Quick Haul Long D9
- Compact cargo bike designed to safely carry 2 kids, with plenty of heel clearance for the rider even if the kiddos require child seats
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and up to 400% support
- Easy-to-use, intuitive Bosch e-bike system helps you stay informed and in control on the road
- Custom 1 x 9-speed e-bike drivetrain with trigger shifter for faster, more precise shifting
- Built tough for hauling, rated to a maximum gross vehicle weight of 190 kg (419 lb) with a rear rack load capacity of 90 kg (198 lb)
- Robust, patented Atlas Kickstand keeps the bike steady for safe loading & unloading of cargo and passengers
- Create customized setups using our wide range of kid & cargo-carrying accessories
- Adjusts without tools to fit riders 155 - 185 cm (5'1" - 6'1"), weighing up to 120 kg (265 lb)
- Third-party tested for safety & meets benchmark German cargo bike standard DIN 79010, with the frame and fork tested well beyond the requirements
Tern Quick Haul Long
General Info
Speeds: 1 x 9
Weight: 29.3 kg (64.6 lb)
Gear Inches: 23" - 89" (1.87 - 7.13 m)
Frame Sizes: One size
Distance: Seatpost to Handlebar: 60 - 64 cm (23.6 - 25.2 in)
Distance: Saddle to Pedal: 76 - 99 cm (29.9 - 39 in)
Suggested Rider Height: 155 - 185 cm (61 - 72.8 in)
Max Gross Vehicle Weight: 190 kg (418.9 lb)
Max Rider Weight: 120 kg (264.6 lb)
Frame
Frame: Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
Fork: Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)
Cockpit
Stem: Speedlifter, adjustable, 3D forged stem, 31.8
Headset: TH, cartridge bearings
Handlebar: Low riser ergo, 31.8, 6061-AL
Grips/Bar Tape: Velo ergonomic, lock-on
Saddle: Velo Comfort
Seatpost: 34.9 mm, 6061-AL, micro-adjust clamp
Seatpost Clamp: Tern Collar
Brakes
Front Brake: Tektro hydraulic disc
Rear Brake: Tektro hydraulic disc
Brake Levers: Tektro hydraulic disc
Wheels
Front Hub: Disc, aluminum
Rear Hub: 9 spd, disc, aluminum, Boost
Spokes & Nipples: Stainless steel
Rims: Tern Atlas H, cargo
Tires: Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex
Transmission
Shifter(s): Tektro, 1 x 9 spd, trigger
Rear Derailleur: Tektro custom for Tern, 1 x 9 spd
Crankset: Tern custom, forged 6061-AL crankarm, anti-drop chainring
Cassette/Freewheel: Tektro 11-42T, 9 spd
Bottom Bracket: Motor integrated
Chain: KMC for eBike, 9 spd
Pedals: Urban with non-slip surface
Shifter Cable & Housing: SP
E-System
Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery: Bosch PowerPack 500
Display: Bosch Purion, 4 mode selectable, walk assist
Range: 500 Wh: 42-85 km (26-53 mi)
Charger: 220V, 4A (EU); 100-240V, 4A (US)
Bells & Whistles
Bell: Aluminum
Chainguard: SKS Chainblade
Kickstand: Atlas Kickstand, for cargo
Luggage Socket: Combo Mount
Front Light: 90 lux, StVZO approved
Rear Light: Herrmans
Fenders: SplashGuard, stainless hardware
Rack(s): Atlas L, 90 kg (198 lb) capacity

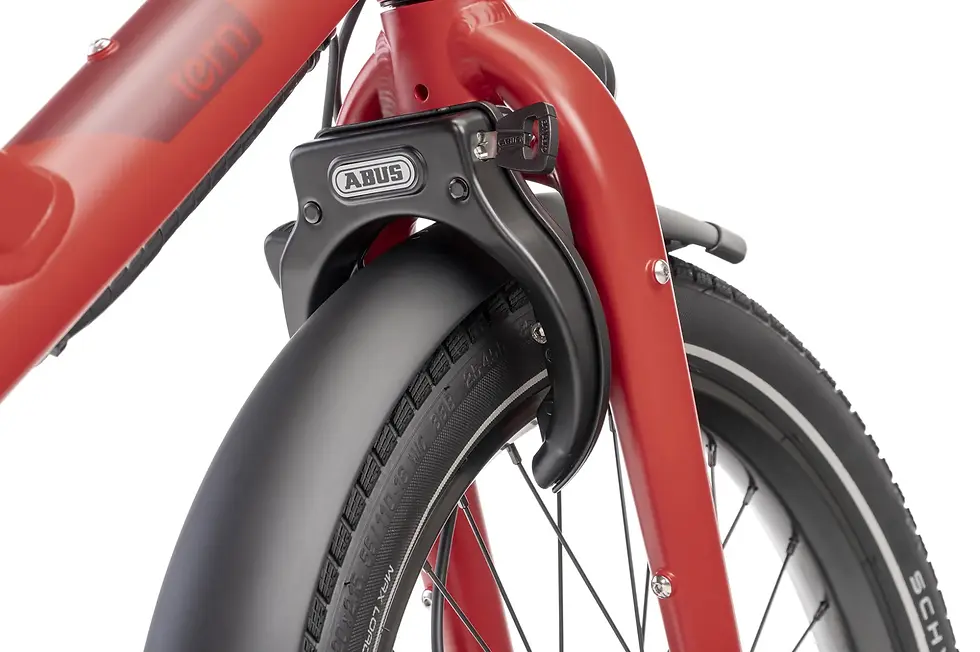

Frame Lock: ABUS or AXA, keyed-alike with Bosch battery
