We're thrilled to unveil the culmination of two years of dedicated research, design, and hard work!!



Introducing the all-new X3 - e-DIRT BIKE powered by Throne Cycles! Experience the electrifying power of 72 volts and 13,000 watts of pure power! A custom alloy frame crafted under 3000 lbs. of pressure, this bike promises an unparalleled adventure.



Safety is always paramount, which is why it has two integrated kill switches and strategically placed lights for enhanced visibility, ensuring your rides are as safe as they are thrilling. Whether you're navigating rugged terrain or enjoying off-road trails, the X3 - e-DIRT BIKE delivers unmatched performance and excitement. New Industry levels!



Embrace the thrill and be among the FIRST to have your own. However, please note that while this bike offers unparalleled excitement, it's important to remember that it's not street-legal. Prepare to elevate your off-road experience like never before with the X3 - e-DIRT BIKE.

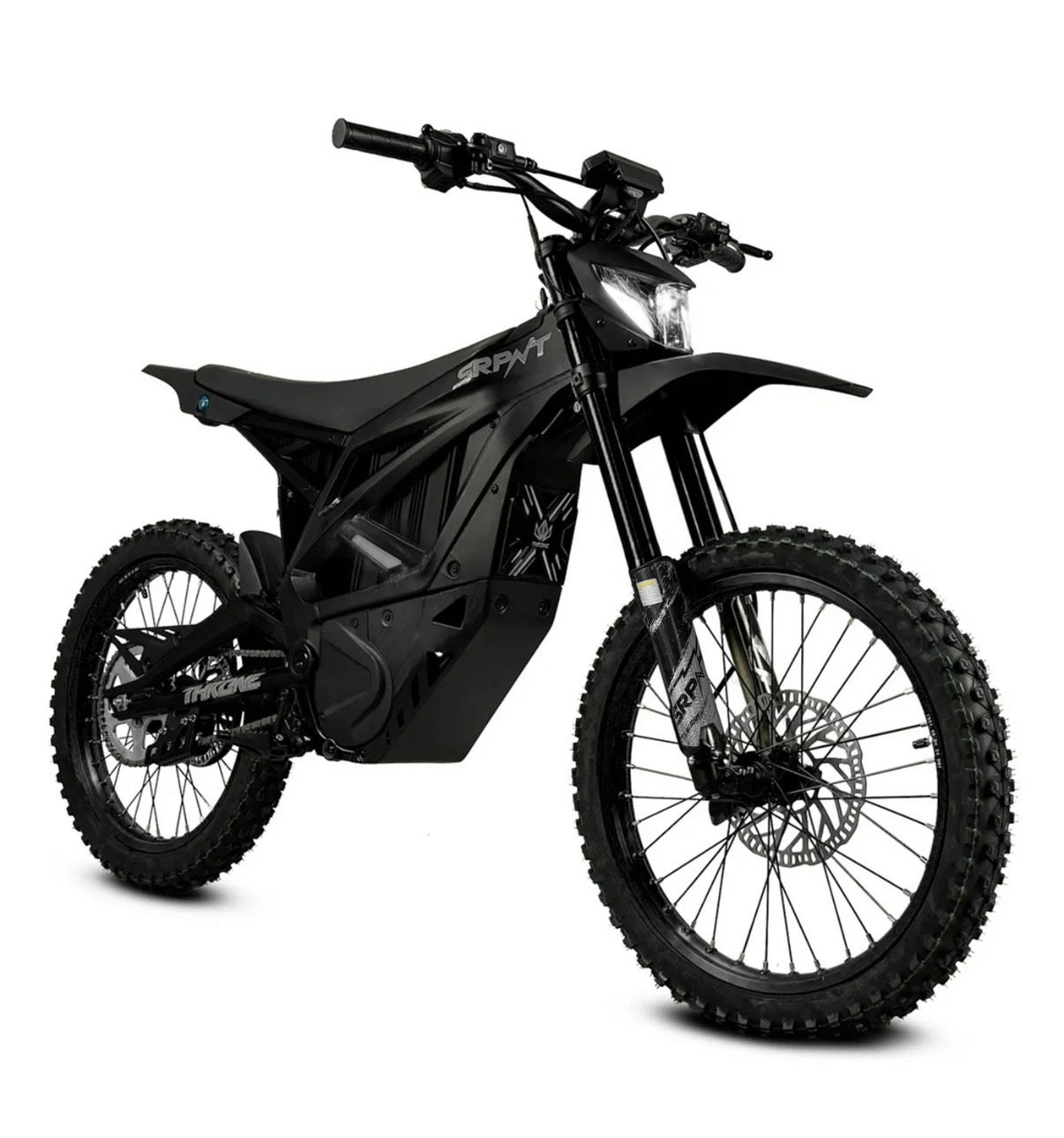

SRPNT X3 eMoto

$5,695.00Price
Color
  • MOTOR
    Motor Type: PMSM
    Mounting Position: Mid
    Weight / Motor External Diameter: 9.55kg / 155mm
    Motor Axial Length: 130mm
    Peak Efficiency: 98%
    Cooling Method: Air-Cooled
    CONTROLLER
    Controller Type: FOC
    Dimensions: 160mm x 142mm x 79mm
    Peak Efficiency: 98.50%
    Power Modes: Eco, High, and Sport
    MOTOR POWER SYSTEM
    Rated Voltage: 72V (DC)
    Rated Torque / Peak Torque: 95115Nm
    Motor Shaft Output Torque @ 1000RPM: 460Nm
    Rated Rotation Speed: 5400rpm
    Peak Efficiency: 97%
    Range of Efficiency (≥80): 3Nm - 45Nm
    TRANSMISSION
    Gear Ratio: 13:51
    Transmission: Motorcycle Chain & 428 Drive Chain
    Model: German Continental Brand, 8M CXA
    ELECTRICAL COMPONENTS
    Horn: CQC
    Battery: 72V 40AH Lithium Battery with 176 LG Cells
    Battery Life Time: 500 Cycles
    Battery Charge Level: Integrated Battery LCD Display
    Charger: 9A
    Charging Time: 3.5 Hours
    USB Connection: Type C

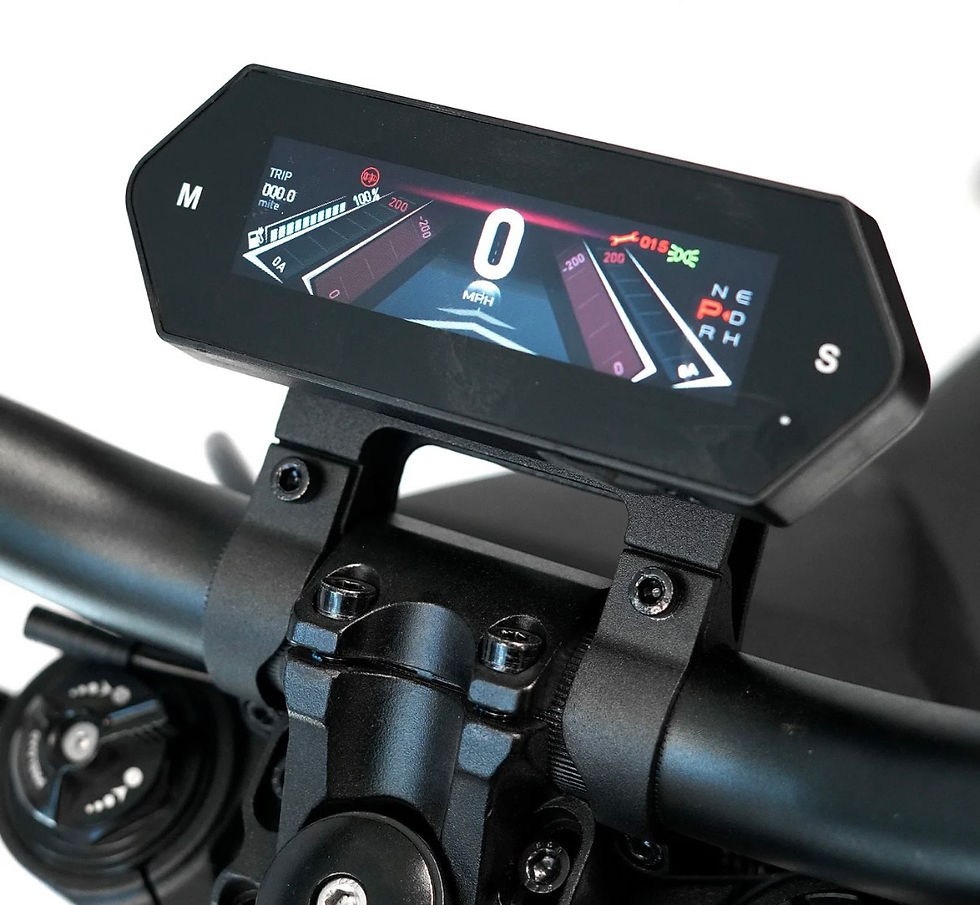

    Speedometer: TFT
    LED Headlight & Rear Light: Yes
    FRAME DETAILS
    Chassis - Swing Arm Material: No.6061 T4&T6 Aluminum
    Chassis Construction Method: Forged by 3000 Tons of Pressure
    Chassis Surface & Color Processing: Baked Paint
    Front Suspension: Inverted Suspension Fork with 200mm Travel
    Rear Shock Absorber: KKE Suspension Link System
    Wheel Type & Size: Front/Rear :1.4-19 , 1.6-19 Alloy Hubs
    DIMENSIONS
    Ground Clearance: 270mm
    Wheelbase:  1250mm
    Seat Height: 85cm
    Vehicle Dimensions: 1880mmX805x1130mm
    DRIVE
    Top Speed:  90km/h
    Net Weight 73kg
    Rear Sprocket 51T
    Side Stand Yes with Kill Switch
    Battery Usage  600 Uses
    Carry Capacity  320lb
