A New Breed
Meet your off-road sidekick: a powerhouse that fuses the nimble precision of a downhill mountain bike with the raw power of a lightweight dirt bike. It's ready for full-on trail domination yet light enough for hassle-free transport. Whether you're a weekend warrior or a seasoned shredder, this ride delivers unparalleled off-road excitement and redefines what's possible on two wheels.

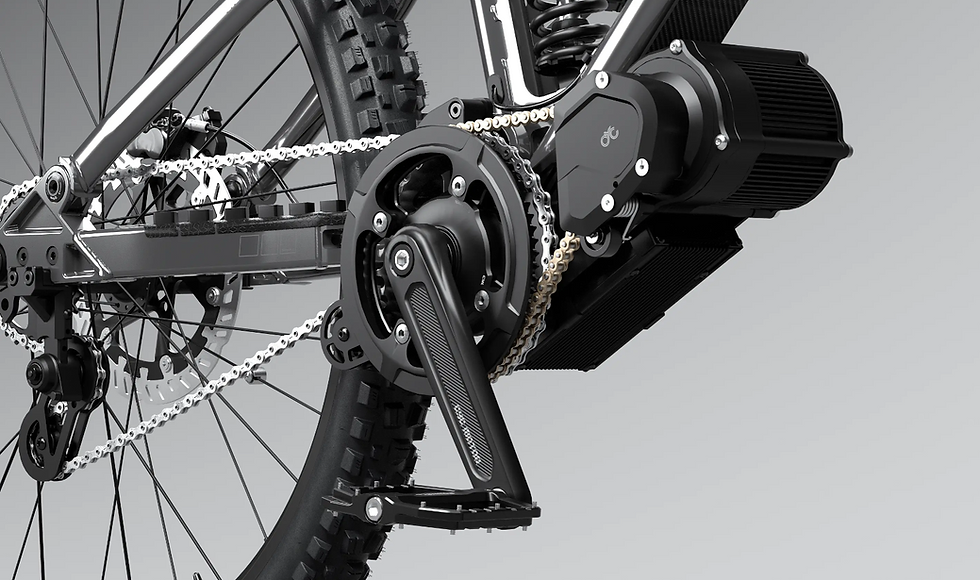

Maximum Power, Maximum Fun : The 775 MX Motor
Dial in your ride: cruise effortlessly with low power and pedal assist as an e-MTB, or ramp things up for impressive speed and performance as an e-Moto. With 6000 watts of power and 280 Nm of torque, it's built to smoothly transition from easy-going to high-adrenaline in a flash.
Elevate Your Ride: Intuition Display
Sleek, powerful, and ultra-responsive interface that puts control and real-time performance data within view.
Power Packed : The MX Battery
Optimized to bring out the motor’s full potential, the A65-series battery offers the versatility to prioritize either maximum power or maximum range, adapting to your riding style. Built for endurance, the A65 series provides unmatched performance, making it the ideal choice for those who love to explore without limits.
Engineered for Durability: The 775 Frame
The 775 MX boasts a rugged 4130 chromoly front triangle with an anti-rust ED coating for lasting durability, complemented by 6061 forged aluminum chainstays, adjustable dropouts, and sealed bearings that deliver smooth, reliable performance on tough trails. Paired with the Suntour Rux 38 RC+ fork and Suntour Voro Coil, this setup provides pro-level ride quality, with custom tuning that elevates both comfort and control—ready to adapt to any challenge.
Bonnell 775 MX
Overview
- Intended use: Off-road
- Front travel: 200
- Rear travel: 170
- Weight: 75 lbs [34kgs]
- Range:12-37 mi [20-60 km]
All Components
Frame
- Progressive single pivot linkage driven suspension design, 170mm travel.
- 4130 chromoly front triangle, twin down tube design, fully ED coated
- 6061 Aluminium chainstay, forged yoke, adjustable forged dropouts with 203mm Postmount brake interface
- UDH derailleur hanger.
- 6061 Aluminium seatstays with removable bridge and forged bearing eyelets
- Forged rocker arm
- Full complement stainless steel sealed bearing, marine grease
- Double sealed suspension pivot system for maximum durability
- Dual crown fork rating up to 615mm axle to crown
- Durable powder coating
Rear Suspension
- Suntour Voro Coil
- Trunnion 205*65
- 5-position low speed compression adjustment (blue knob)
- Low speed rebound adjustment (red knob)
Headset
- Tapered ZS44 top
- ZS56 bottom sealed bearings
Fork
- Suntour Rux 38 RC+, tapered 1"1/8-1.5", 29"
- 200mm travel
- 50 mm offset
- Boost 20*110 mm thru axle
- Short integrated fender included.
What's in the box
The 775 MX: A New Breed - minimal assembly required.
- Battery & Charger: Power up your ride with the included high-capacity battery and charger.
- Multi-Tool Kit: Compact but powerful, this kit has everything you need for quick adjustments on the go.
- Shock Pump: Easily set and fine-tune your suspension for smooth, epic rides every time.
